Choosing portable speakers with good bass requires looking beyond the size of the speaker or the number printed beside its amplifier rating. Low-frequency performance is one of the hardest problems in compact audio because deep bass requires substantial air movement, while portability demands a small enclosure, efficient components, low weight, and long battery life.
A successful portable speaker therefore has to make every physical component work harder and smarter. The driver must achieve useful excursion, the motor must maintain control, the enclosure must manage internal pressure, and the acoustic system must create additional low-frequency displacement without turning the cabinet into a source of unwanted vibration.
This is why two speakers with similar dimensions can produce dramatically different bass. The difference is often hidden inside the enclosure.
The Physical Challenge of Deep Bass
A loudspeaker does not create bass electronically in isolation. It creates sound by physically moving air.
The amount of air displaced by a driver depends primarily on two factors:
Radiating area × excursion
A larger diaphragm provides more surface area. Greater excursion allows the diaphragm to move farther.
Large home speakers can achieve substantial displacement using large cones and cabinets. Portable speakers have far less physical space, so engineers must find alternative ways to increase effective air movement.
That is where high-excursion drivers and acoustic loading become valuable.
Why Bass Quality Depends on Control
A speaker can produce strong bass and still sound poorly controlled.
When low-frequency output is excessive or distorted, the result can become:
- Boomy
- Muddy
- Slow
- Overly resonant
- Difficult to separate into individual notes
Good bass should retain timing and pitch information.
A kick drum should have impact and definition.
A bass guitar should retain its individual notes.
Electronic sub-bass should feel deep without masking vocals.
The goal is therefore not simply to maximize low-frequency output. The goal is to maximize useful, controlled displacement.

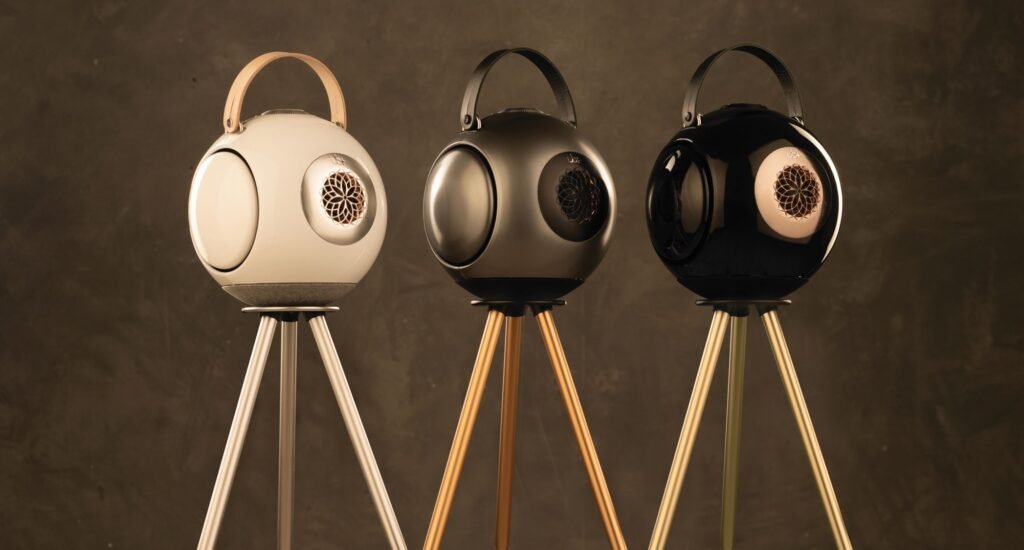

Acoustic Spotlight: UB+ dB1 DoubleBass
The UB+ dB1 DoubleBass approaches compact bass reproduction through an integrated mechanical acoustic architecture.
Its 4.5-inch woofer provides approximately 20 mm piston movement and combines a 35 mm long-stroke voice coil, 90 mm neodymium magnet, wide-surround suspension, and aluminum shorting ring.
The woofer operates inside a spherical acoustic chamber inspired by Helmholtz resonance. As the active driver moves, it creates pressure variations inside the chamber. Those pressure variations drive two symmetrical passive radiator plates.
The combined passive radiator surface is approximately 3.5 times larger than the active woofer, creating additional low-frequency radiating capability.
The passive radiators move in opposing directions. This symmetry helps counteract reaction forces and reduce unwanted cabinet vibration while contributing additional acoustic displacement.
The system provides approximately 40 Hz–20 kHz frequency response, 93 dB SPL, Bluetooth 5.3, and 20 hours of playback.
The significance lies in how these elements interact. The woofer generates pressure, the chamber manages that pressure, the passive radiators transform it into additional movement, and the symmetrical arrangement helps maintain mechanical stability.
The Importance of Woofer Excursion
Excursion is one of the most important physical characteristics of a compact bass system.
It describes how far the diaphragm moves from its resting position.
If the diaphragm has limited excursion, increasing the amplifier power eventually stops producing proportionally more useful bass because the driver reaches its mechanical limits.
A driver capable of greater controlled excursion has more potential air displacement.
The dB1’s approximately 20 mm piston movement is designed around this principle.
However, excursion must be controlled.
The voice coil, motor, suspension, and mechanical structure must all support the movement.
Otherwise, additional excursion can increase distortion rather than improve bass.
Long-Stroke Voice Coil Architecture
The dB1 uses a 35 mm long-stroke voice coil.
The voice coil is the electromagnetic component responsible for turning the audio signal into mechanical movement.
When current passes through the coil within the magnetic field, a force is generated that moves the diaphragm.
A long-stroke architecture allows the moving assembly to travel through a larger range.
For compact bass reproduction, this provides a way to increase displacement without dramatically increasing the physical diameter of the woofer.
But the useful performance comes from maintaining control throughout that movement.
The Role of the 90 mm Neodymium Magnet
The dB1 uses a 90 mm neodymium magnet as part of its motor system.
The magnetic field interacts with the voice coil and provides the force needed to move the diaphragm.
Neodymium is valuable in compact speaker engineering because it provides high magnetic energy density relative to its physical size.
This makes it possible to build a strong motor structure without using a disproportionately large magnet assembly.
The motor becomes especially important when the driver is asked to operate through substantial excursion.
Suspension Determines Mechanical Control
The suspension supports the moving assembly and helps keep the diaphragm aligned.
The dB1 uses a wide-surround suspension designed to support its high-excursion architecture.
A suspension must balance two competing requirements:
Allow movement while maintaining control.
If the suspension is too restrictive, excursion becomes limited.
If the moving assembly is insufficiently controlled, distortion can increase as excursion rises.
This makes suspension design an important part of compact bass performance.
Aluminum Shorting Ring and Motor Linearity
The dB1 driver incorporates an aluminum shorting ring.
A shorting ring can help manage magnetic behavior within the motor structure and reduce certain nonlinear effects.
This is particularly relevant to a driver designed for substantial movement.
The objective is to maintain more predictable motor behavior as the voice coil travels through its operating range.
This illustrates an important principle in loudspeaker engineering: bass performance depends on maintaining control under demanding mechanical conditions.
Why the Enclosure Matters
The driver is only one part of a loudspeaker.
The enclosure establishes the acoustic environment surrounding it.
Its internal geometry influences:
- Air pressure
- Acoustic loading
- Resonance
- Standing waves
- Air movement
- Structural vibration
A compact enclosure has limited internal volume, which makes these relationships especially important.
An efficient portable speaker therefore treats the enclosure as an acoustic component rather than simply a housing.
Spherical Acoustic Architecture
The dB1 uses a spherical acoustic chamber inspired by Helmholtz resonance.
The geometry differs from the conventional rectangular cabinets used in many loudspeakers.
A spherical chamber does not have the same extensive parallel internal surfaces as a box, changing the way internal acoustic energy interacts with the enclosure.
The spherical chamber also participates in the pressure mechanism that drives the passive radiators.
This makes the geometry functional.
The shape contributes to the acoustic system rather than existing purely for visual differentiation.
Helmholtz Resonance Explained
Helmholtz resonance describes the resonant behavior of an enclosed volume of air coupled with a resonant opening or equivalent acoustic element.
The principle is commonly used in acoustic engineering to influence low-frequency behavior.
The dB1 uses a Helmholtz-inspired approach within its spherical acoustic chamber.
The active woofer creates pressure variations.
Those pressure variations interact with the passive radiators.
The resulting mechanical system supports additional low-frequency displacement.
This is an important distinction from simply increasing bass electronically.
Passive Radiators and Air Displacement
A passive radiator is an unpowered diaphragm that responds to pressure inside an enclosure.
It has no dedicated voice coil or amplifier.
Instead, the active driver creates pressure changes that cause the passive radiator to move.
The basic process is:
Active driver movement → chamber pressure → passive radiator movement → additional air displacement
This allows a compact speaker to increase its effective low-frequency radiating capability without adding another powered woofer.
Why Dual Passive Radiators Are Mechanically Useful
The dB1 uses two symmetrical passive radiator plates.
Their opposing movement helps balance mechanical forces.
When one radiator moves outward, the other moves inward.
Their reaction forces therefore work against one another.
This reduces the tendency of the enclosure to move in response.
Cabinet vibration is undesirable because it can transfer mechanical energy into the enclosure and supporting surface instead of directing that energy into the surrounding air.
Mechanical symmetry helps reduce that loss.
The Significance of 3.5× Radiating Surface
The combined passive radiator surface is approximately 3.5 times larger than the active woofer.
Radiating area is important because it affects how much air can be displaced.
The active woofer generates the pressure required to move the passive radiators.
The passive radiators then contribute additional low-frequency movement.
The result is a compact acoustic system with substantially greater effective low-frequency radiating surface than the active woofer alone.
This is one of the central engineering strategies behind the dB1’s bass architecture.
Why Mechanical Bass Is Different From Bass Boost
Digital signal processing can be extremely useful.
DSP can modify the signal and manage the behavior of the speaker.
It can provide:
- Equalization
- Frequency shaping
- Driver protection
- Output management
- System monitoring
But DSP does not remove the physical requirement to move air.
A driver still has a finite excursion range.
The enclosure still has limited volume.
The diaphragm still has a finite surface area.
Electronic processing can alter the signal, but mechanical acoustic design determines how effectively that signal becomes physical displacement.
Understanding the 40 Hz–20 kHz Range
The dB1 provides approximately 40 Hz–20 kHz frequency response.
The lower figure indicates extension into the lower bass region.
That can be useful for recordings containing deep bass fundamentals and low-frequency effects.
However, frequency range should be treated carefully.
A stated frequency range does not independently describe:
- Response flatness
- Output at the lowest frequency
- Distortion
- Maximum sustained bass level
- Room interaction
It is one useful specification within a larger acoustic picture.
What 93 dB SPL Tells You
The dB1 provides approximately 93 dB SPL.
SPL describes acoustic output capability.
This matters because bass-heavy content can demand substantial acoustic output and driver movement.
A speaker with sufficient headroom can reproduce dynamic peaks without operating continuously at its maximum level.
Still, maximum SPL does not determine sound quality.
A controlled system with lower distortion can be more satisfying than a louder system operating near its limits.
Why Wattage Is an Incomplete Measurement
Amplifier wattage is easy to compare.
Acoustic performance is not.
Electrical power passes through an entire chain before becoming sound.
| Element | Function |
| Woofer | Produces primary acoustic movement |
| Excursion | Determines potential diaphragm displacement |
| Voice coil | Converts electrical input into mechanical force |
| Magnet | Creates the motor field |
| Suspension | Controls diaphragm movement |
| Acoustic chamber | Manages pressure and loading |
| Passive radiators | Add low-frequency displacement |
| Radiating area | Determines air-moving capability |
| Mechanical symmetry | Reduces cabinet reaction |
| DSP | Manages signal and system limits |
| Frequency response | Indicates stated frequency extension |
| SPL | Indicates acoustic output capability |
A higher wattage rating does not automatically mean a speaker will produce deeper or cleaner bass.
The efficiency of the entire acoustic chain matters more.
Why Portable Speakers Sound Different Indoors
Low frequencies interact strongly with room boundaries.
A portable speaker placed close to a wall can receive additional low-frequency reinforcement.
A corner can reinforce bass even more because multiple surfaces interact with the sound field.
Furniture can also influence the result by transmitting mechanical vibration.
This means a speaker’s perceived bass is partly determined by its environment.
Outdoor Bass Is a Different Test
Outside, there are far fewer boundaries to reinforce low frequencies.
The speaker therefore needs to produce more of its bass directly.
This can reveal the underlying efficiency of the acoustic system.
A speaker that sounds extremely bass-heavy indoors may sound more balanced outdoors.
Conversely, a speaker with efficient low-frequency displacement can maintain useful bass even when boundary reinforcement is limited.
Placement Can Improve Bass Balance
Because portable speakers can be repositioned easily, placement is one of the simplest ways to change the listening experience.
Near a wall
Expect additional low-frequency reinforcement.
In a corner
Bass can become stronger because multiple boundaries interact.
On a rigid table
Mechanical vibration may be transferred into the surface.
In open space
There is less boundary reinforcement.
If the bass sounds excessive, moving the speaker away from boundaries may help.
If the sound is too thin, moderate boundary reinforcement may provide a fuller presentation.
Portability Is More Than Size
A truly portable speaker must balance acoustic performance with practical constraints.
The enclosure has to accommodate:
- Woofer
- Magnet
- Voice coil
- Passive radiators
- Battery
- Amplifier
- Wireless electronics
- Structural components
Increasing the physical size of every component would compromise portability.
The engineering challenge is therefore to improve efficiency within the available volume.
Bluetooth 5.3 Connectivity
The dB1 supports Bluetooth 5.3.
This enables wireless playback from compatible smartphones, tablets, and computers.
For portable audio, wireless connectivity is an important part of usability because the source device does not need to remain physically attached to the speaker.
Battery Performance
The dB1 provides 20 hours of playback.
Long battery life allows the speaker to remain useful across extended listening sessions without being continuously connected to a power source.
Actual runtime varies according to listening volume and operating conditions.
Battery efficiency is therefore part of the broader engineering challenge of portable audio.
How to Compare Portable Speakers for Bass
A useful comparison should begin with the physical system rather than marketing claims.
Look at driver excursion
Greater controlled excursion can increase air displacement.
Examine the motor
Motor construction influences force and driver control.
Consider suspension design
High-excursion movement requires mechanical stability.
Study the enclosure
The chamber affects pressure, resonance, and acoustic loading.
Identify the bass system
Passive radiators and other acoustic architectures can increase low-frequency capability.
Consider mechanical balance
Reducing cabinet reaction can improve efficiency.
Check frequency extension
A lower frequency specification is useful but should be interpreted alongside output and distortion.
Evaluate practical portability
Battery life, Bluetooth connectivity, size, and weight all affect real-world usefulness.
Frequently Asked Questions
- What makes portable speakers with good bass different?
They typically use an acoustic architecture designed to produce sufficient low-frequency air displacement while maintaining control. Driver excursion, motor strength, suspension, enclosure design, passive radiators, and mechanical stability all contribute.
- Can a compact speaker produce deep bass without a large woofer?
Yes. High controlled excursion and efficient acoustic loading can compensate for limited radiating area. Passive radiators can further increase effective low-frequency displacement.
- Why does the enclosure affect bass performance?
The enclosure controls the acoustic environment around the driver. Its volume and geometry influence internal pressure, resonance, acoustic loading, and the way low-frequency energy is produced.
- Are passive radiators the same as extra woofers?
No. Passive radiators are unpowered diaphragms. They respond to pressure generated by the active driver and contribute additional acoustic displacement without requiring a separate amplifier.
- Does placement affect the bass of a portable speaker?
Yes. Walls, corners, floors, and furniture can reinforce low frequencies or transmit mechanical vibration. Changing placement can therefore significantly change perceived bass.
Final Takeaway
The strongest portable speakers with good bass are built around a physical understanding of low-frequency reproduction.
Deep bass requires air displacement.
Controlled bass requires that displacement to remain mechanically stable.
The UB+ dB1 DoubleBass approaches the problem with a 4.5-inch woofer providing approximately 20 mm piston movement, supported by a 35 mm long-stroke voice coil, 90 mm neodymium magnet, wide-surround suspension, and aluminum shorting ring.
The woofer operates inside a spherical acoustic chamber inspired by Helmholtz resonance. Pressure generated by the active driver drives two symmetrical passive radiator plates whose combined radiating surface is approximately 3.5 times larger than the active woofer. Their opposing movement helps reduce unwanted cabinet vibration while contributing additional low-frequency displacement.
The system provides approximately 40 Hz–20 kHz frequency response, 93 dB SPL, Bluetooth 5.3, and 20 hours of playback.
The larger lesson is that compact bass performance is not primarily about making a speaker louder.
It is about using limited physical space efficiently.
A high-excursion driver increases displacement. The motor provides control. The suspension stabilizes movement. The spherical chamber manages pressure. The passive radiators provide additional radiating area. Their symmetrical operation helps control mechanical reaction.
When these elements are designed as one system, a compact portable speaker can produce bass that feels deep without being boomy, powerful without becoming uncontrolled, and detailed without sacrificing portability.
That is the engineering standard worth looking for when comparing portable speakers.
